Description

Model   CS-C6N

Image Sensor     1/4″ Progressive Scan CMOS

Shutter Speed   Self-adaptive shutter

Lens       4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical

Lens Mount        M12

Day & Night        IR-cut filter with auto-switching

DNR       3D DNR

WDR      Digital WDR

Video Compression         H.264

Video Bit Rate   Full HD, HD, Standard. Adaptive bit rate

Max. Resolution               1920 × 1080

Frame Rate         Max. 15fps; Self-adaptive during network transmission

Smart Alarm       Motion detection

Wi-Fi Pairing       AP Pairing

Storage MicroSD card slot (Max. 256 GB)

Power   Micro USB

Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Standard              IEEE802.11 b/g/n

Frequency Range             2.4 GHz ~ 2.4835 GHz

Channel Bandwidth         Supports 20MHz

Security                64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate           11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

Power Supply    DC 5V/1A

Power Consumption       5W max

IR Range              MAX. 10m (32.81 fts)

Dimensions        88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions   103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”)

Bare Weight       218g (0.48lb)

Packaging Contents        C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide

About this Product

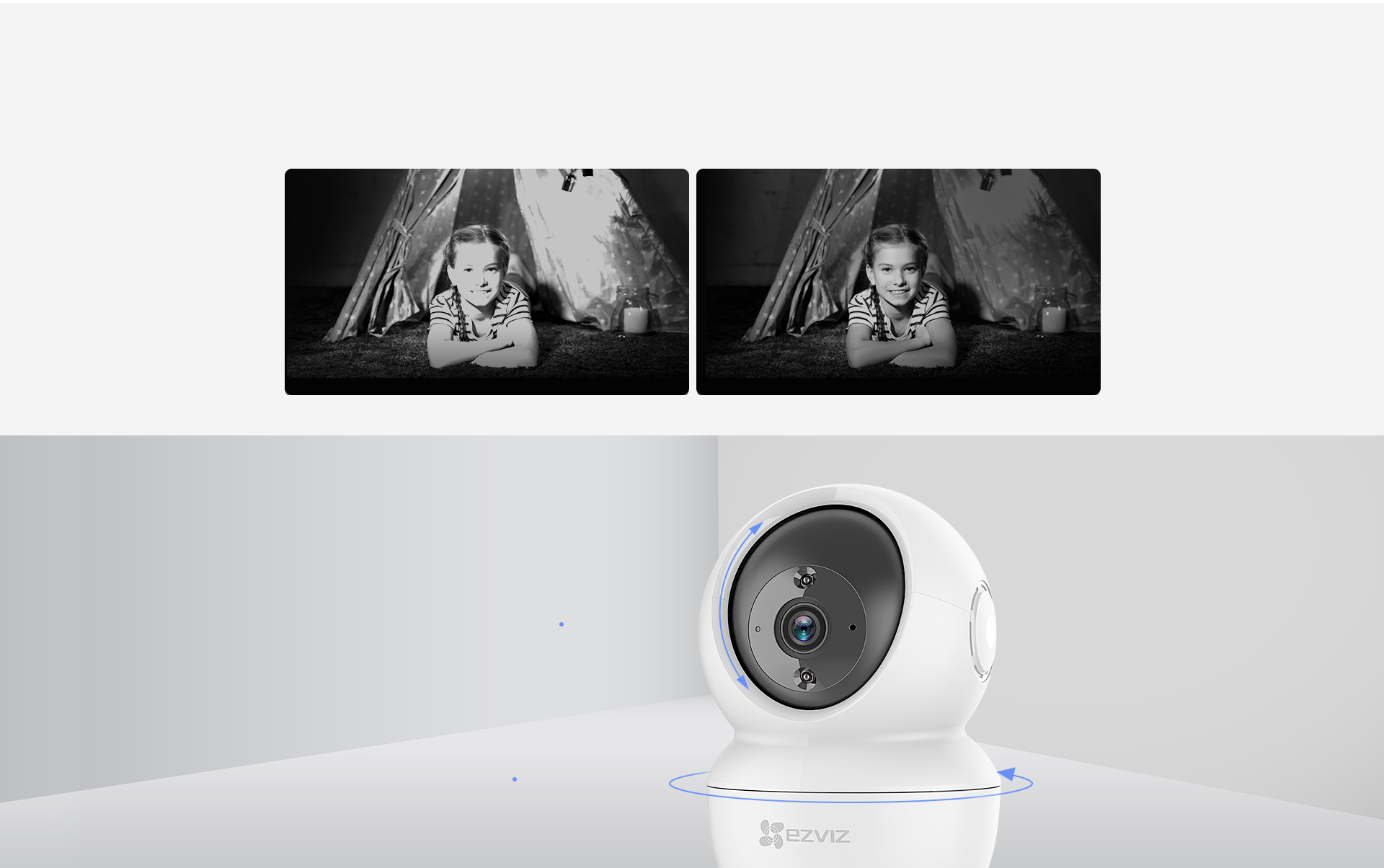

The C6N from EZVIZ comes equipped with a Smart IR function, which uses advanced infrared (IR) lighting to capture more details in dim light. With its 360-degree field of view and smart tracking function, you won’t need to worry about missing a thing.
